Description

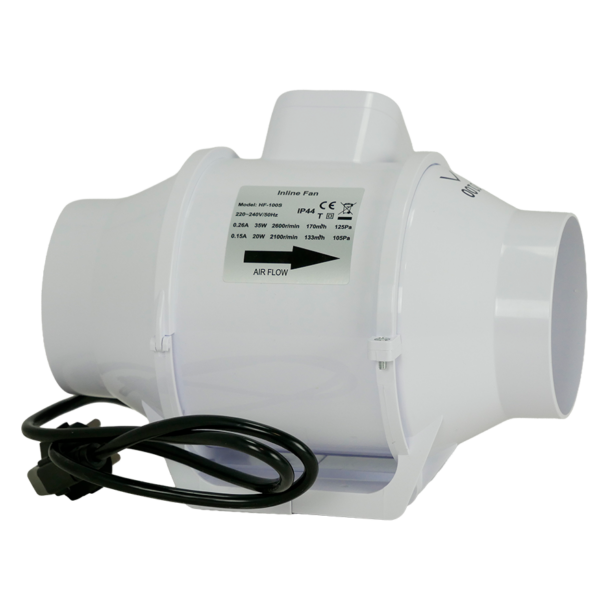

Pikkuvihreä’s duct fan is suitable for dry toilets and other small spaces where improved ventilation is needed. This efficient and high-quality fan helps ensure that odors from the toilet are always directed safely and reliably outdoors. A powerful fan also improves liquid evaporation inside the toilet, which reduces the amount of leachate that needs to be handled. In addition, the fan helps improve the composting process of toilet waste.
This duct fan fits directly into the ventilation pipes of the Green Toilet 120, Green Toilet 330, and Green Toilet Lux models. With reducers (75 mm), it can also be used with the Green Toilet Easy, Light, and Green Toilet Lux cassette model.
The product has an IP44 rating, making it suitable for outdoor use, for example on a covered terrace or under the eaves.
The fan comes with a 1-meter power cord with plug, as well as sealing tapes for 110/75 mm pipe connections. The power can be set during installation to two different speeds (fixed internal connection inside the unit, see installation instructions).
The product comes with a 2-year warranty.
TECHNICAL SPECIFICATIONS
- Width: 200 mm
- Length: 250 mm
- Height: 175 mm
- Suitable for 110 mm / 75 mm ventilation pipe
- Two-speed fan
- V/Hz: 220–240 / 50
- r.p.m.: 2600 / 2100
- m³/h: 170 / 130 (depending on speed)
- Noise level: 31 / 26 dB(A)
- Motor power: 35 / 20 W (depending on speed)
- IP rating: IP44
- Weight: 1.3 kg
- 2-year warranty
Toilet ventilation is important
Ventilation plays a major role in both the use and maintenance of a dry toilet.
Read more on the topic on our blog:
Ventilation of dry toilets
